>Forge Series

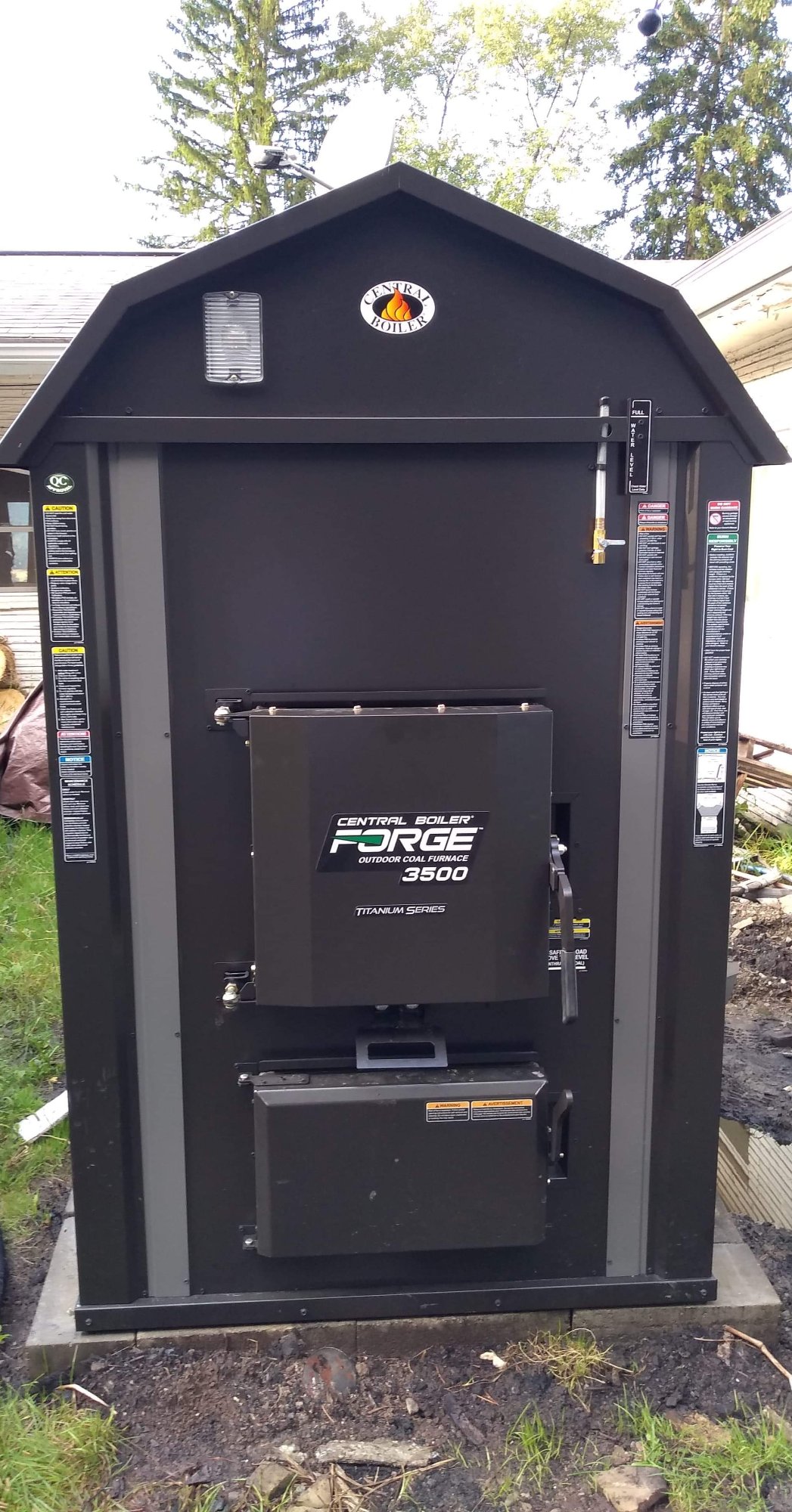

Forge Outdoor Coal Furnace Series
The FireStar® combustion controller monitors all functions of the furnace and automatically adds air when and where it is needed (over or under the fire, or both) for a cleaner and more efficient burn. Loading coal is easy with the large firebox door. Ergonomically designed, the firebox door is insulated and easy to open and close. Heavy-duty shaker grate, conveniently operated by handle on side of the furnace, allows ash to fall below into the ash collection area. Ash removal is easy.
Forge 1500 - Specifications
Door - 18"W x 18"H
Firebox - 40" x 30" x 26"
Heat Transfer Area - 52 sq ft
Ash Cleanout Door - 19"W x 11"H
Grate Size - 6" x 16-7/8"
Water Capacity - 150 gal.
Weight - 1,750 lbs
Supply/Return Ports - 1 set of 1-1/4" supply and return ports (can be configured for two pumps)
Btu Rating - 150,000 Btu/hr
Included with outdoor furnace - Water Test Kit, Ground Rod Kit and two 4-foot chimney sections
Forge 3500 - Specifications
Door - 18"W x 18"H
Firebox - 50" x 36" x 30"
Heat Transfer Area - 74 sq ft
Ash Cleanout Door - 19"W x 11"H
Grate Size - 6" x 16-7/8"
Water Capacity - 210 gal.
Weight - 2,150 lbs
Supply/Return Ports - 1 set of 1-1/4" supply and return ports; 1 set of 3/4" supply and return ports
Btu Rating - 350,000 Btu/hr
Included with outdoor furnace - Water Test Kit, Ground Rod Kit and two 4-foot chimney sections
